In this article

1. Filter Drop Zone
   • Filter Drag and Drop Options
2. Modify your Filters
   • Add/Replace Switch
   • Search
   • Deselect All/Select All
   • Clear All

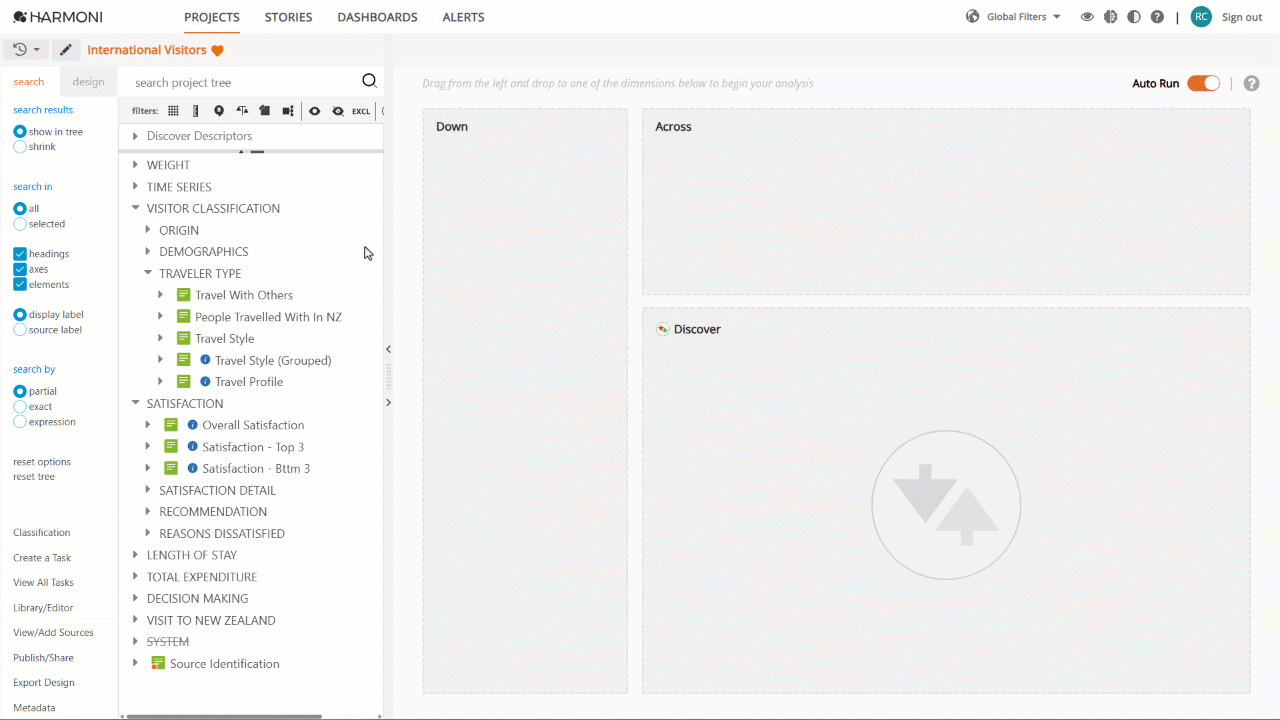

1. Filter Drop Zone

Dragging an item to the filter drop zone applies a filter to the analysis. You can drag one or multiple filters from the project tree to the drop zone. The green pin indicates the number of items being dragged.

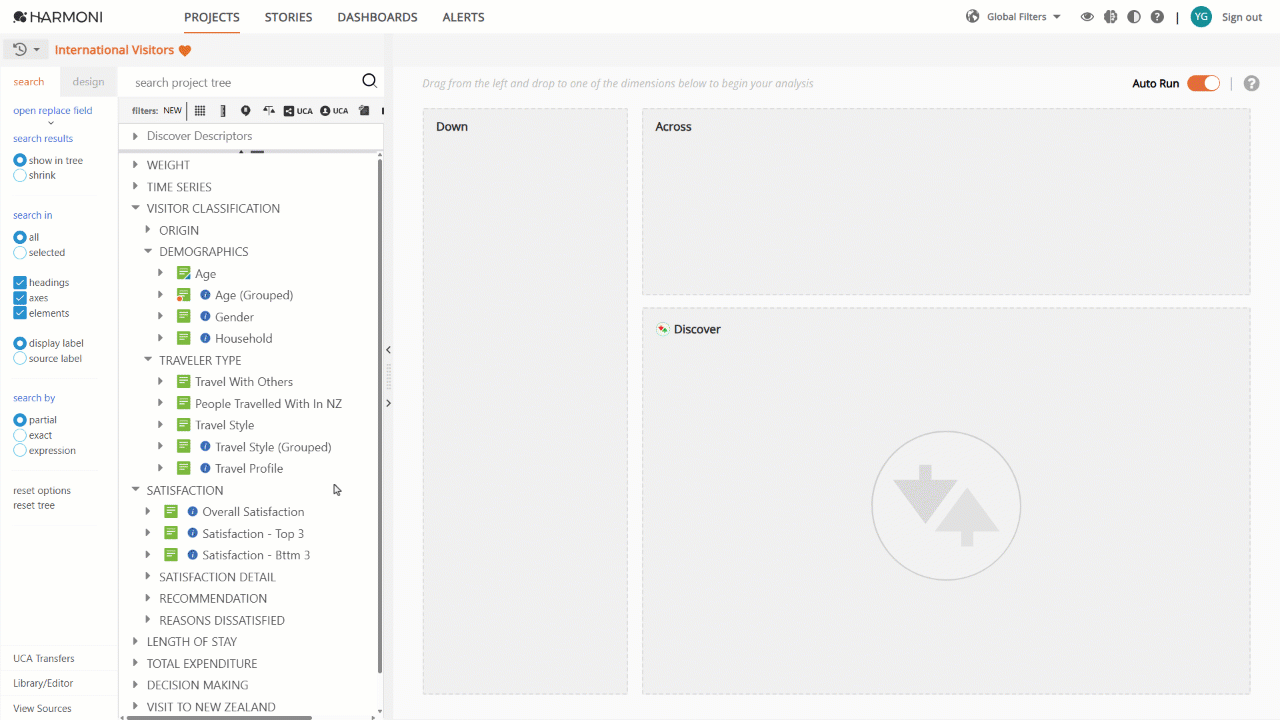

Create an analysis and drag an axis to the filter drop zone. Once you have a dragged in a filter, you can view and change filters using the filtered by option in the interactive title.

• Create an analysis
• Drag item(s) to the filter drop zone
• The filtering axis filters by its first element
• The filtering items display in the interactive title

Items you can drag into the Filter drop zone

• Headings (with no verbatims or measures)
• Standard, Date or Linked axes
• Constructed or Combined axes
• Classifications

Filter Drag and Drop Options

• If an element is dragged to the filter drop zone, then only this element is available and none of the other elements in the same axis.
• If an axis is dragged to the filter drop zone, by default the first element in the axis becomes the filter for the table, but the other elements are available should you wish to change the filter to another element in the axis.
• Add appends to the previous selection.
• Replace removes the previous selection.
• All items added to the filter drop zone remain available for selection until the analysis is cleared or reset.

• Drag an element to the filter zone to filter the analysis by that element only
• Drag the entire axis to filter by its first element
• Click the interactive title to change the filter
• Add an axis to apply additional filters
• Use Replace to remove all previous filters and include a new filter

2. Modify your Filters

Once the filters are included in your analysis, you can adjust them using the features in the Selector.

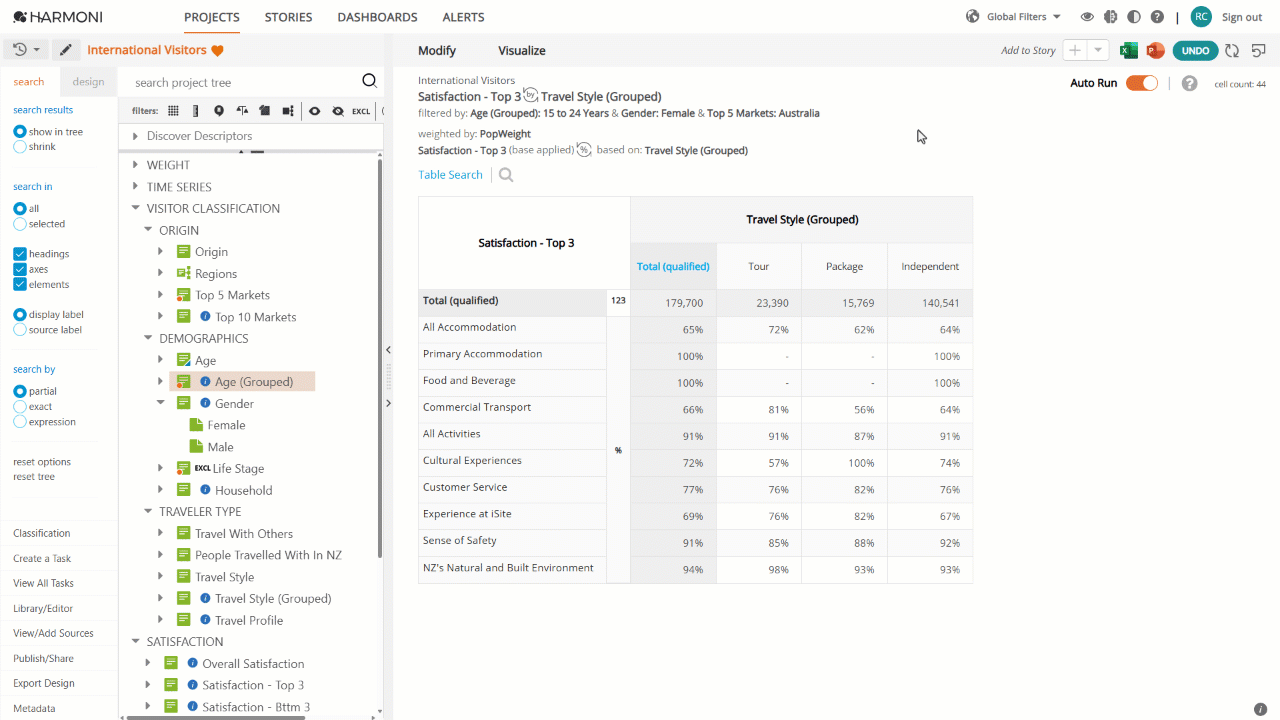

Add/Replace Switch

With the switch set to Replace, you can add one element from each filter. Switch to Add and you can include multiple elements from each filter.

• Click the filtering axes in the interactive title to open the Selector
• In Replace mode, select one filter per axis
• Switch to Add mode and use the check boxes to include multiple filters per axis

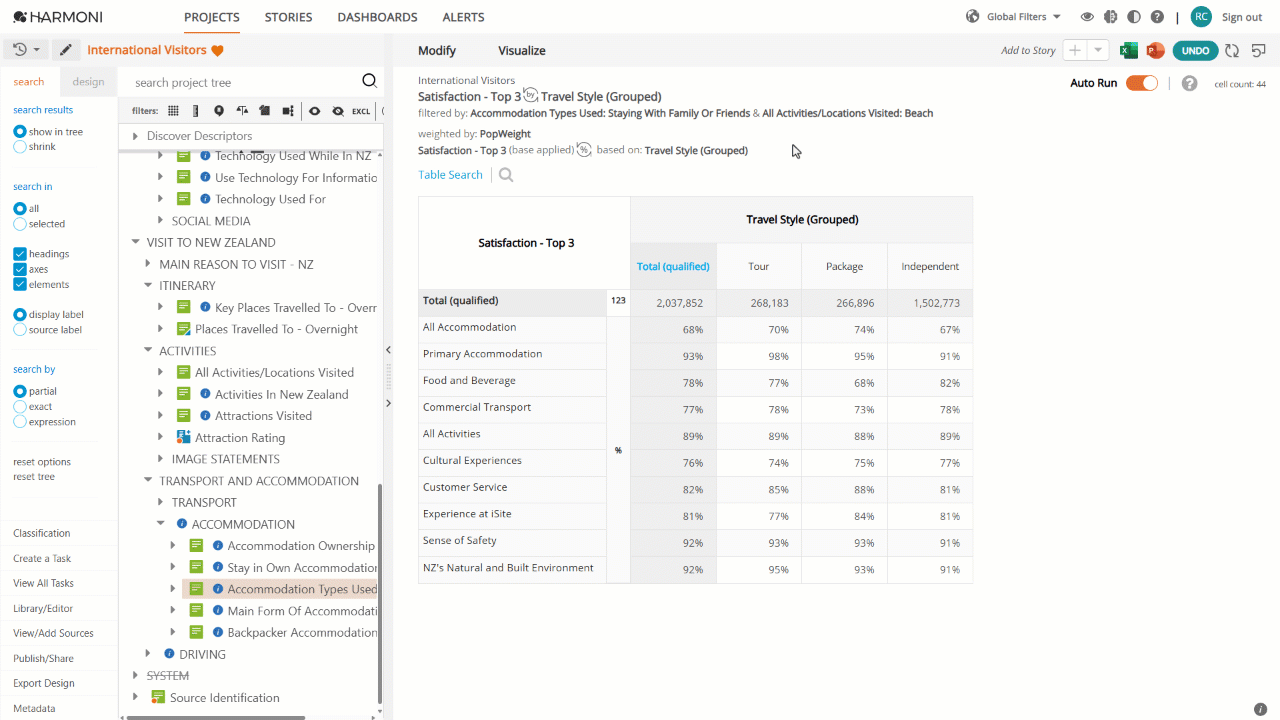

Search

Use the search option in the Selector to find and select the filters you need.

• Click the interactive title to open the Selector
• Type in the search field to narrow down the list
• Select an item to filter by

Deselect All/Select All

Deselect All/Select All is available for each axis in the filter and helps to quickly remove or add items.

• When multiple items are selected in a filter, it's easy to remove them all at once using Deselect All.
• Used in combination with Search, Select All lets you select multiple items at once. Ensure you Deselect All first if you don't need the currently selected items included. When using search, these options only apply to what is returned in the search.
• Deselecting All removes the axis as a filter, but it is retained for use until you clear or reset the analysis.

• Filter elements from two axes are included in an analysis
• Click Deselect All to clear filters
• Use search to show only matching elements across all axes
• Click Select All to filter by the searched items

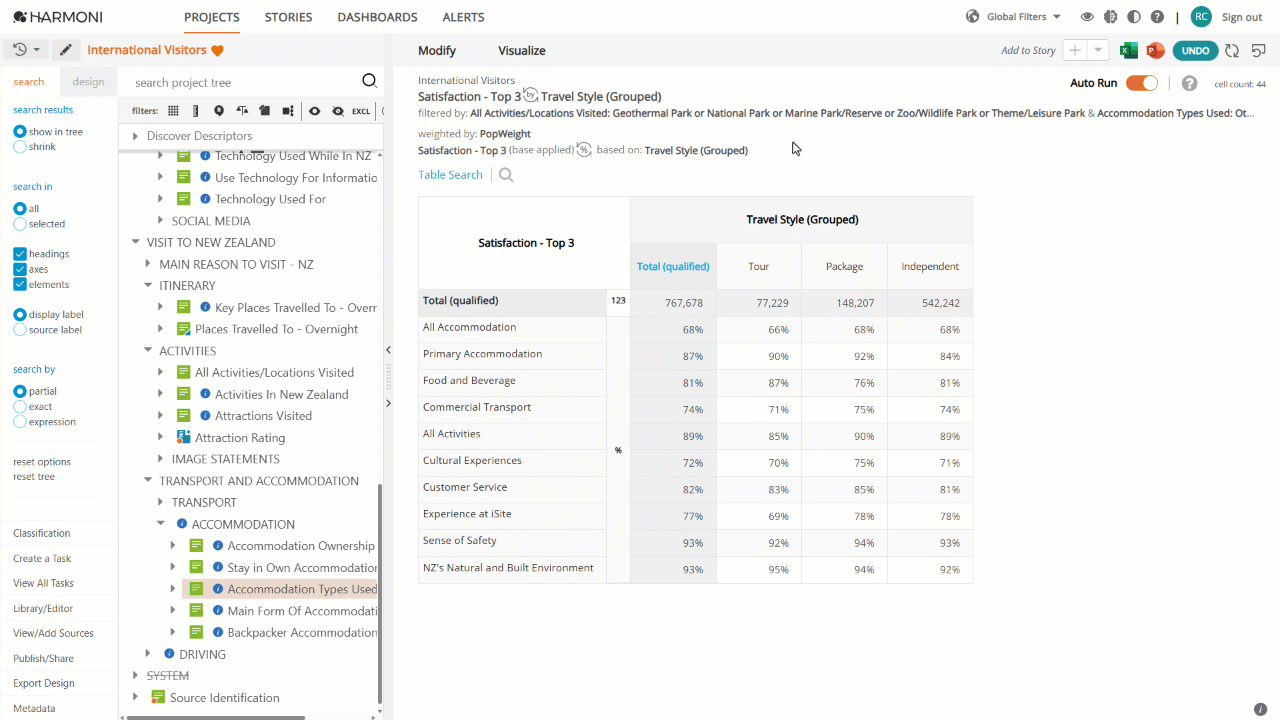

Clear All

You can use the Clear All option to clear all the filters from your analysis. Although the filters are cleared, they are still available in the Selector and remain so until you clear or reset the analysis. Click No filter added in the interactive title to access the filter options.

Clear All clears all selections in the filter and is not limited to any items specified in the search bar.

• Open the Selector
• Click Clear All to remove all filters
• Click No filter added in the interactive title to view the filters

Where to from here?

Learn more about analysis in Harmoni:

• Drag and drop to create your analysis
• Undo, Clear and Reset
